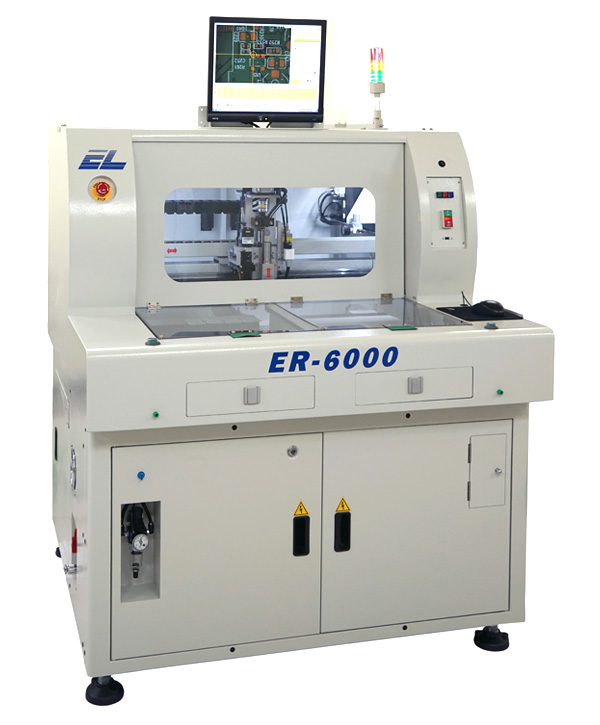

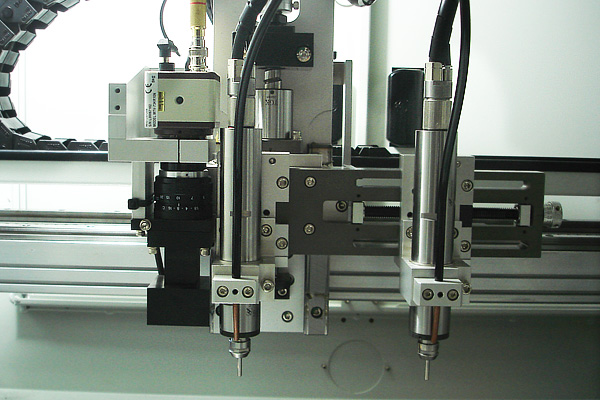

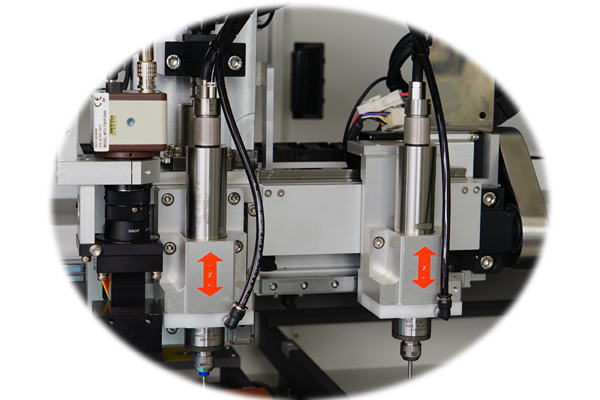

ER-6000
OFF LINE PCB Separator Cut Machine
Specification
- Sliding table positioning mode：Servo precise positioning Single and double slides table
- Cover mode: magnet buckle platen mechanism
- Maximum working range of upper dust collection(W*D)900x630mm
- Maximum working range of lower dust collection(W*D)900x650mm
- SS, SL, SX, S70L, S80L and S90L can only be used as single slides
- Working height：920mm±20mm
- Cutting speed：1~100 mm/s
- Mechanical repeatability：± 0.01 mm
- Control System：PC-based 4 Axis controller
- Drive way：AC Servo motor
- working system：IPC Windows 10
- Cutting accuracy：± 0.05 mm
- Spindle speed：Max. 60000 rpm
- Host voltage：1φ, AC 220V 50/60Hz
- Air supply：4~6 kg/cm², flow:1500 L/hr
- Power consumption：2.2 KVA
- Dust collection method：External type,upper exhaust type 3HP,See Catalog EV-720
- Dust collection method：standard External type,lower exhaust type 3HP,See Catalog 3(5)HP
- Static elimination：Static elimination gun (lower exhaust type)
- Using high-efficiency dust collection to improve the dust collection effect, along with the newly developed dust collection structure for much better cleaning.
- Gantry stucture increase cutting accuracy and cutting speed
- Safety light curtain at P&P table fits for public safety demand
| Type | Workbench | Up suction working range (W*D) |
Down suction working range (W*D) |
Customer fixture restrictions (W*D) |
| SS | 1 Table | 330*420mm | 330*440mm | 370x450mm |
| SL | 1 Table | Too small to make a platen | 300*540mm | 346x596mm |
| SX | 1 Table | 400x500mm | 400x520mm | 440x530mm |
| DS | 2 Table | 250*320mm | 250*340mm | 294x350mm |
| DW | 2 Table | 330*420mm | 330*440mm | 370x450mm |
| DWL | 2 Table | 330*620mm | 330*640mm | 370x650mm |
| DM | 2 Table | 400*420mm | 400*440mm | 440x450mm |
| DX | 2 Table | 500*470mm | 500*490mm | 540x500mm |
| DXL | 2 Table | 500*620mm | 500*640mm | 540x650mm |
| DXXL | 2 Table | 600*620mm | 600*640mm | 650x650mm |
| D65L | 2 Table | 650*620mm | 650*640mm | 700x650mm |
| S70L | 1 Table | 700x630mm | 700x650mm | 750x660mm |
| S80L | 1 Table | 800x630mm | 800x650mm | 850x660mm |
| S90L | 1 Table | 900x630mm | 900x650mm | 950x660mm |
| Type | weight(Kg) | Machine size W*D*H | Picture file | |
| SS | 600 | 970*1300*1880mm | 工作範圍 | |
| SL | 640 | 750*1455*1835mm | 工作範圍 | |
| SX | 700 | 1040x1460x1880mm | ||
| DS | 700 | 1340*1230*1880mm | The scope of work | |
| DW | 750 | 1470*1300*1880mm | The scope of work | |
| DWL | 815 | 1470*1670*1880mm | The scope of work | |
| DM | 770 | 1610*1300*1880mm | The scope of work | |
| DX | 830 | 1810*1410*1880mm | The scope of work | |
| DXL | 990 | 1810*1700*1880mm | The scope of work | |
| DXXL | 1100 | 2030*1700*1880mm | The scope of work | |
| D65L | 1150 | 2130*1700*1880mm | The scope of work | |
| S70L | 850 | 1470*1760*1880mm | The scope of work | |
| S80L | 950 | 1570*1760*1880mm | The scope of work | |
| S90L | 1050 | 1670*1760*1880mm | The scope of work |
