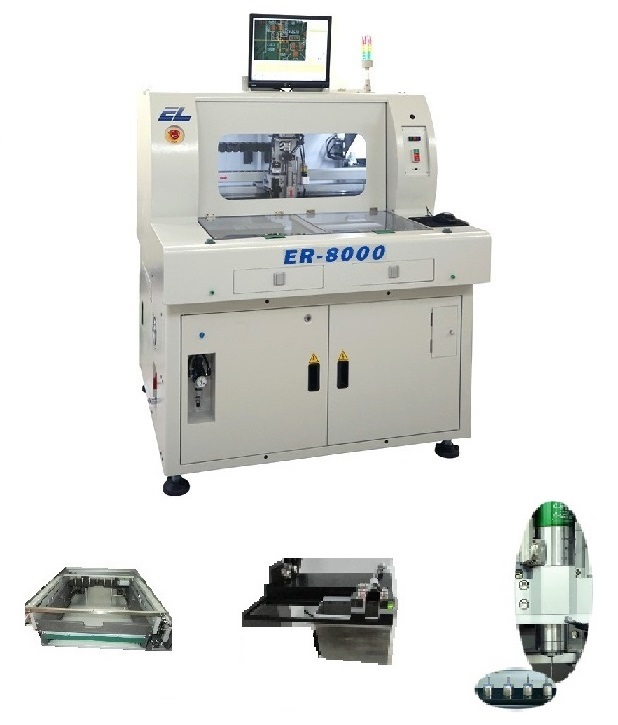

ER-8000
OFF LINE PCB Separator Cut Machine
Specification
- Sliding table positioning mode: Servo precise positioning double sliding table
- Cover plate method: cylinder type platen mechanism
- Maximum working range of upper dust collection(W*D)400x320mm
- Maximum working range of lower dust collection(W*D)400x340mm
- Working height：920mm±20mm
- Cutting speed：1~100 mm/s
- Mechanical repeatability：± 0.01 mm
- Control System：PC-based 4 Axis controller
- Drive way：AC Servo motor
- working system：IPC Windows 10
- Cutting accuracy：± 0.05 mm
- Spindle speed：Max. 60000 rpm
- Host voltage：1φ, AC 220V 50/60Hz
- Air supply：4~6 kg/cm², flow:1500 L/hr
- Power consumption：2.2 KVA
- Dust collection method：External type,upper exhaust type 3HP,See Catalog EV-720
- Dust collection method: standard built-in type,lower exhaust type HP and Blower
- Static elimination：Static elimination gun (lower exhaust type)
- Equipped with automatic cutter change function
- Adopting high-efficiency dust collection to improve the dust collection effect, and newly developed dust collection structure, the dust is cleaner.
- X, Y and A axes adopt gantry structure to improve cutting accuracy and speed.
- The pick-and-place work area is equipped with safety facilities to meet public safety requirements.
| Type | Workbench | Up suction working range (W*D) |
Down suction working range (W*D) |
Customer fixture restrictions (W*D) |
| DW | 2 Table | 330x320mm | 330x340mm | 370x350mm |
| DWM | 2 Table | 400x320mm | 400x340mm | 440x350mm |
| Type | weight(Kg) | Machine size W*D*H | Picture file | |
| DW | 750 | 1630x1300x1910mm | The scope of work | |
| DWM | 800 | 1770x1300x1910mm | The scope of work |
